| Miejsce pochodzenia: | Zhejiang, Chiny |
|---|---|
| Nazwa handlowa: | Factory or OEM / ODM |
| Orzecznictwo: | UKCA, CE, ROHS, PAHS, REACH, IP68, IP69K, UV, HF |
| Numer modelu: | NCG-M25S-18 |
| Minimalne zamówienie: | 1000 sztuk |
| Cena: | factory direct sale |
| Szczegóły pakowania: | standardowe opakowanie (na życzenie dostępne jest również opakowanie specjalne) |
| Czas dostawy: | zwykle 5-8 dni |
| Zasady płatności: | T/T, akredytywa, Western Union |
| Możliwość Supply: | 2 000 000 sztuk każdego miesiąca |
| Spec.: | M25x1.5 | Ochrona: | IP68, IP69K |
|---|---|---|---|
| Tworzywo: | Zatwierdzony przez UL PA66, 94V-2 (94V-0 jest opcjonalny) | części uszczelniające: | NBR, EPDM, guma silikonowa, FKM/FPM |
| Standardowe kolory: | Jasnoszary RAL7035, czarny RAL9005 | Cechy: | Odporny na warunki atmosferyczne, wodę, słabe kwasy, zasady, korozję i promienie ultrafioletowe. |
| Standard gwintu: | Zgodnie z europejską normą EN60423 | Ocena jakości: | Wysoka jakość |
| UL746C-f1: | Uległy | Używać: | Nadaje się do użytku na zewnątrz (6-12 lat długiej żywotności do użytku w pomieszczeniach) |

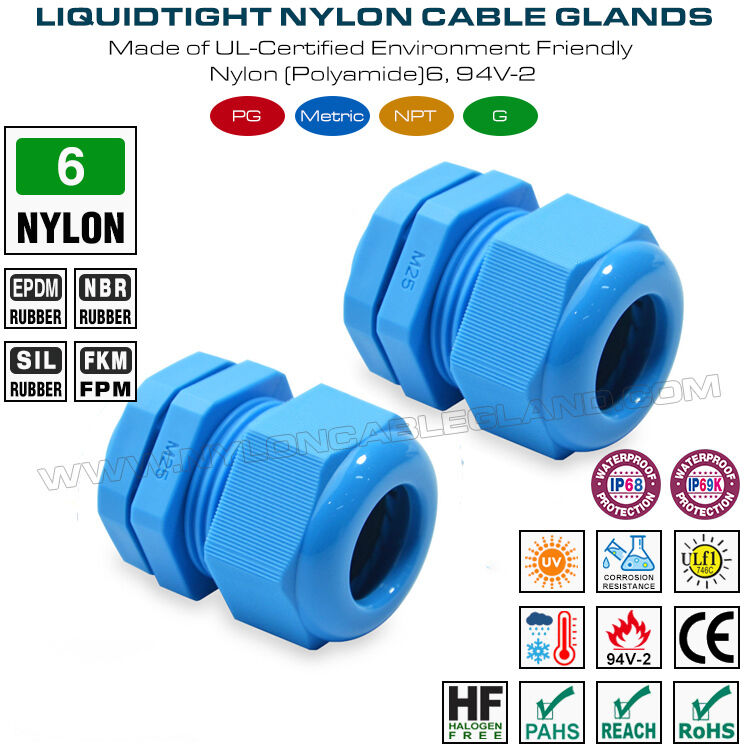

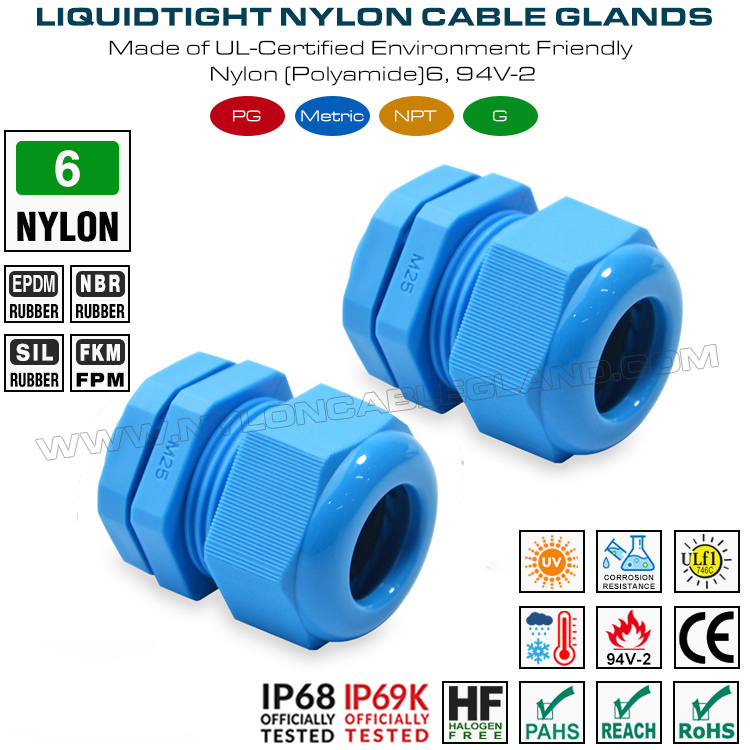

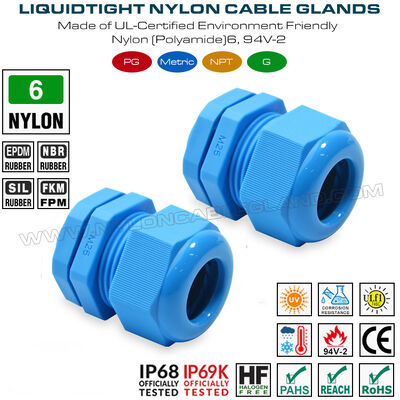

(1) Premium Quality: Our nylon cable glands are made from high tensile strength & tough Polyamide 6 material, effectively resistant to UV, moisture, flame, water, acid, alkali, alcohol, and common solvents, providing long-term protection for your indoor and outdoor applications.

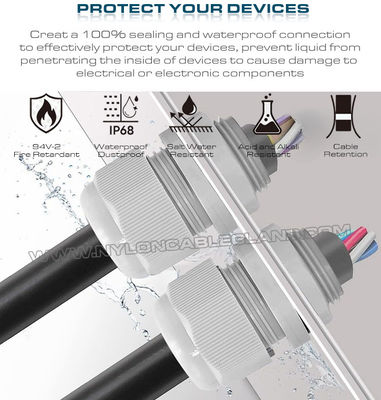

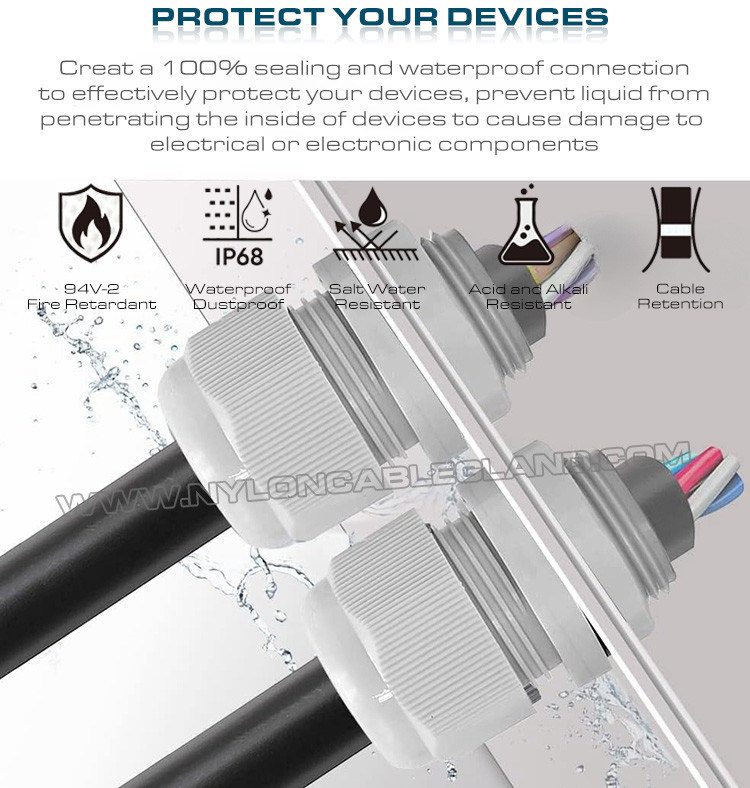

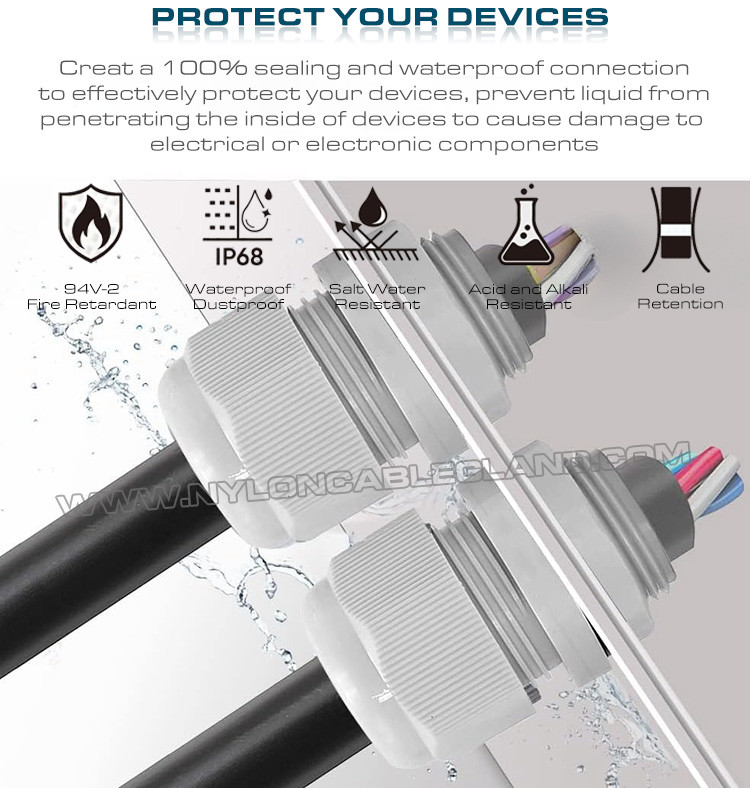

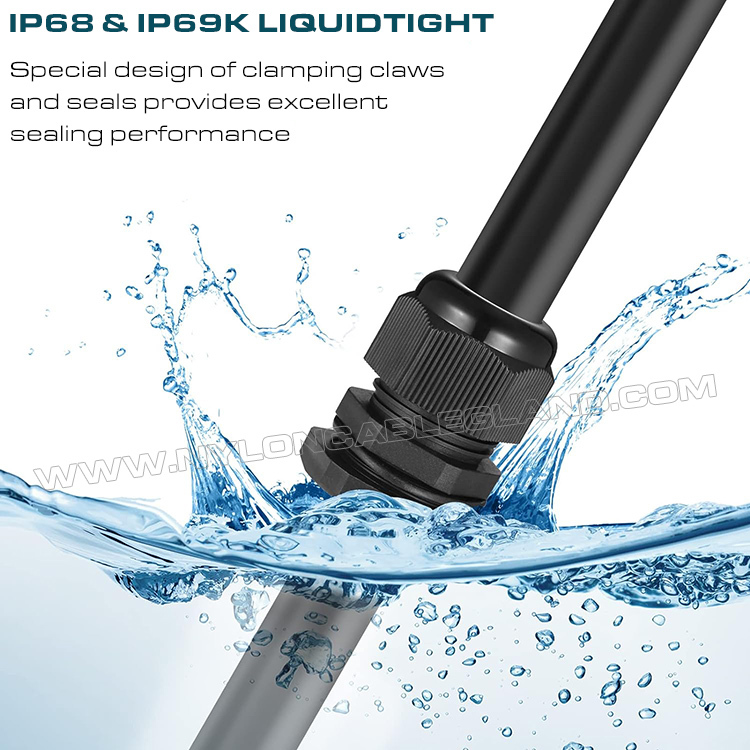

(2) Strongly Watertight: Our nylon cable glands meet the IP68 rated waterproofing, meaning they can resist immersion in water one meter even more in depth. They consist of a locknut, a o-ring, a body, a seal and a sealing nut. Comparing to the normal united structure cable glands, our version comes with an extra single piece of o-ring, which generates a tighter bundle on cables, better protecting your electrical equipment.
(3) Wide Applications: Our nylon cable glands have a wide cable range from 2mm to 77mm. You’re allowed to use them in various electrical projects such as cable fixing, wiring, mechanical control box, switchboard, electrical appliances, instrumentation, electrical appliances, etc, and provide long time protection for your indoor and outdoor applications.

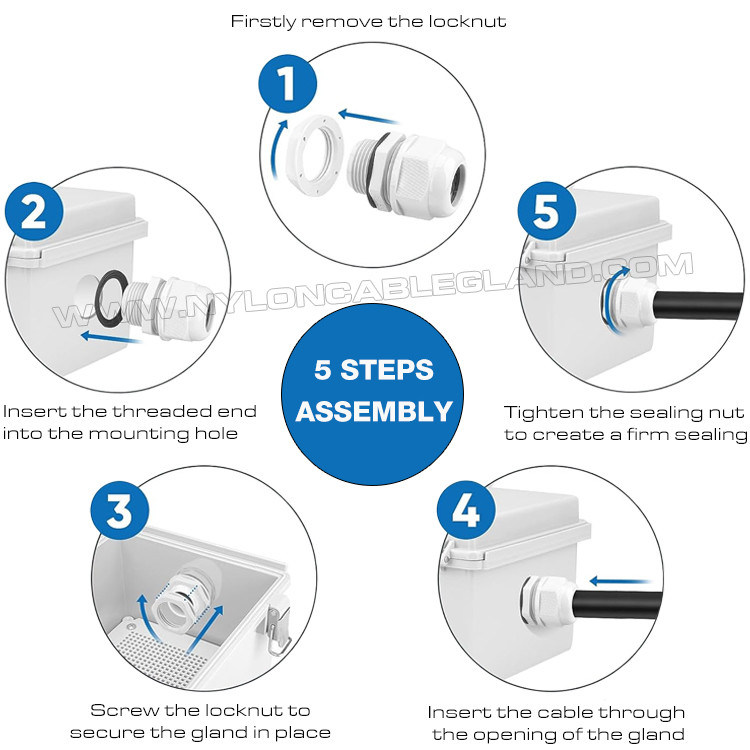

(4) Easty Installation: Simple four steps to install our cable glands in your electric project: put the thread side into the hole, screw tight the lock nut, insert the cable, screw tight the sealing nut, there is no need for disassembly.
(5) Export Packaing: Normally 100pcs/bag, other special packages can be available. Plus, there're also other different sizes of cable glands available in our factory.

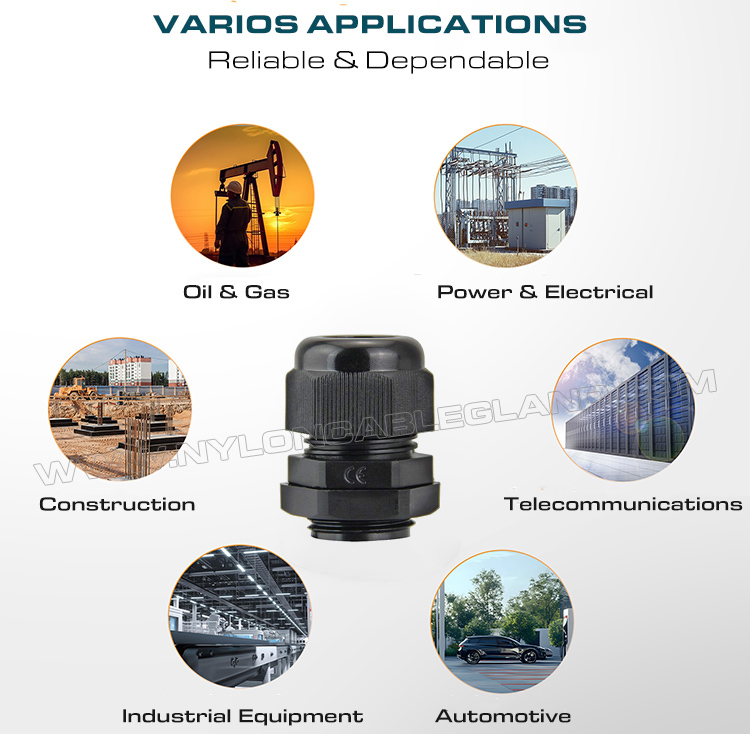

► Industrial Automation: Machine tools, robots, automated production lines, and control cabinets.
► New Energy Industry: Wind power generation, solar photovoltaic equipment, and charging pile systems.
► Outdoor Lighting and Security: Urban lighting projects, LED outdoor displays, streetlights, and surveillance cameras.
► Electromechanical and Complete Equipment: Pumps, motors, distribution boxes, communication base stations, and instruments.
► Transportation: Construction machinery, rail transit, and shipbuilding.
| Brand name: | Factory or OEM/ODM |
| Place of origin: | Zhejiang, China |
| Spec.: |
M25x1.5 (cable range: 13-18mm) |
| Material: | plastic parts: UL-polyamide 6, 94V-2 (contact us for 94V-0 material) |
| sealing parts: NBR, EPDM, Silicone, FKM/FPM | |
| Color: | grey RAL7035, black RAL9005, special colors can be customized |
| Certifications: | CE, UKCA, ROHS, PAHS, REACH, IP68, IP69K, UV, Halogen Free |
| IP protection: | IP68 / IP69K (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | available in short thread & long thread |
| Thread system: | according to EN 60423 |
| Working temperature: |
static: -40℃ to +100℃, short-term: +120℃. |
| Quality grade: | high quality version can last 6-12 years of long service life for indoor applications & at least 5 years of long life for outdoor applications |
| OEM services: | yes, available |
| Supply capability: | 2,000,000 pieces each month |
| Minimum quantity: | 1000 pieces |
| Samples available: | free samples are available upon request |
| Delivery time: | normally 5-8 days after confirmation of orders |
| Payment terms: | T/T, Western Union, L/C at sight |
| Shipment terms: | shipped by EMS / TNT / DHL / UPS / FEDEX, by sea / by air |
| Export packing: |
100 pieces per bag + 100 pieces per color box, |
